SKYPLANT
| Quantity: | |
|---|---|
Darkened Blackout Greenhouse Product Advantages:

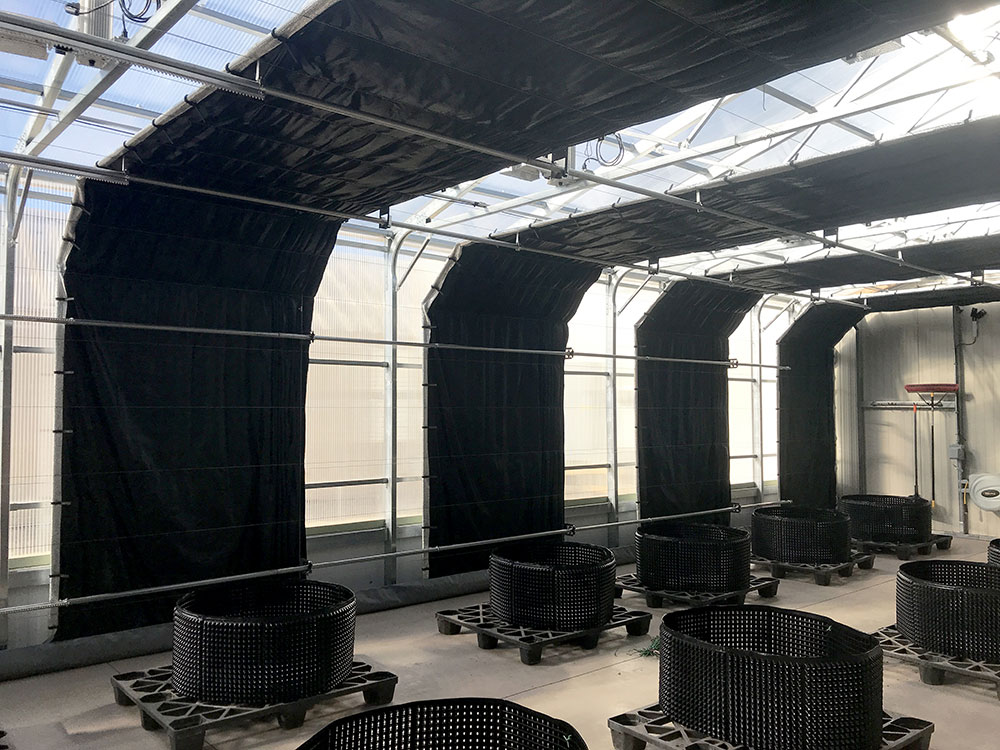

100% LIGHT PROOF: 3-layer internal light curtain
AUTOMATIC OPERATIONE: equipped with control cabinet
STRONG WIND AND SNOW RESISTANCE: 7 connecting rods with stronger wind and snow resistance
MORE HEAT PRESERVATION: 8mm thick PC board with stronger thermal insulation and longer service life
Features of Attached Light-controlled Blackout Greenhouse:
Ultraviolet protection.
Reduce hail damage.3. To reduce water evaporation in soil and effectively anti-drip.
In summer, the it can shade the sunlight.
In winter, it can keep the greenhouse warm so that the vegetables and flowers can grow well.
Different crops and various shade nets are available.
Automatic or manual operation.
Three Layers Breathable,100% Blackout.
Span Width | Shoulder Height | Total Height | Wind Load | Snow Load | Dead/Hanging Load |
| 66*20ft | 6.6ft | 14.8ft | ≤0.4KG/m² | ≤0.3KG/m² | 15KG/m² |
| 92*30ft | |||||
| 105*30ft | |||||
| 118*30ft |
| Name | Specification | Description |
| Arch | φ60*2.0mm bows, 2m spacing | Hot galvanized steel square tube, with zinc coated 275g/m² |
| Roof Purlin | 7 runs ofφ32*1.5mm tube | |
| Truss Supports | 50*30*1.5mm pipe | |
| Derrick and Brace | 50*30*1.5mm | |
| Door | 1.5*2m | Aluminum alloy frame |
| Optional | Side ventilation with rool up machine. Drip/Micro irrigation system. Heating/Cooling system. | |
Darkened Blackout Greenhouse Product Advantages:
100% LIGHT PROOF: 3-layer internal light curtain
AUTOMATIC OPERATIONE: equipped with control cabinet
STRONG WIND AND SNOW RESISTANCE: 7 connecting rods with stronger wind and snow resistance
MORE HEAT PRESERVATION: 8mm thick PC board with stronger thermal insulation and longer service life
Features of Attached Light-controlled Blackout Greenhouse:
Ultraviolet protection.
Reduce hail damage.3. To reduce water evaporation in soil and effectively anti-drip.
In summer, the it can shade the sunlight.
In winter, it can keep the greenhouse warm so that the vegetables and flowers can grow well.
Different crops and various shade nets are available.
Automatic or manual operation.
Three Layers Breathable,100% Blackout.
Span Width | Shoulder Height | Total Height | Wind Load | Snow Load | Dead/Hanging Load |
| 66*20ft | 6.6ft | 14.8ft | ≤0.4KG/m² | ≤0.3KG/m² | 15KG/m² |
| 92*30ft | |||||
| 105*30ft | |||||
| 118*30ft |
| Name | Specification | Description |
| Arch | φ60*2.0mm bows, 2m spacing | Hot galvanized steel square tube, with zinc coated 275g/m² |
| Roof Purlin | 7 runs ofφ32*1.5mm tube | |
| Truss Supports | 50*30*1.5mm pipe | |
| Derrick and Brace | 50*30*1.5mm | |
| Door | 1.5*2m | Aluminum alloy frame |
| Optional | Side ventilation with rool up machine. Drip/Micro irrigation system. Heating/Cooling system. | |
