Flower seeding nursery bench mesh grow table rolling bench system cultivation seedbed

ADVANTAGES
1.Rolling System is Space Saving
●Increase the greenhouse area utilization to 80%.
2.Galvanized Surface Treatment
●For corrosion resistant & durability.
3.Preassembly Components & Factory Welded Stands
●For easy installation & operation.
4.Mitred Corners Design
●Prevent workers or customers from ripping clothing
5.Anti-Tip Mechanisms on Rolling Benches
●Avoid rollover due to weight deviation.
6.Steady Rolling Bench Tops
●Available in welded wire mesh top & expanded metal top.

Availability:

Quantity:



Inquire Add to Basket

Product Description

Item	Details
Bench Size	(W × L) 4' × 8', 4' × 10', 5' × 10', 5' × 12', 5.6' × 15', maximum 6.56' × 19.7'
Total Length	＞ 7.5', according to customers' demand
Tray Height	1.18", 2.95", 4.92"
Moving Space	12" – 19.7
Color	Sliver
UV Resistant	Yes
Bearing Capacity	up to 500 N/M2
Metal Support	Available
Service Life	20 years
Clip on Bench Side Profile	Aluminum alloy + ABS

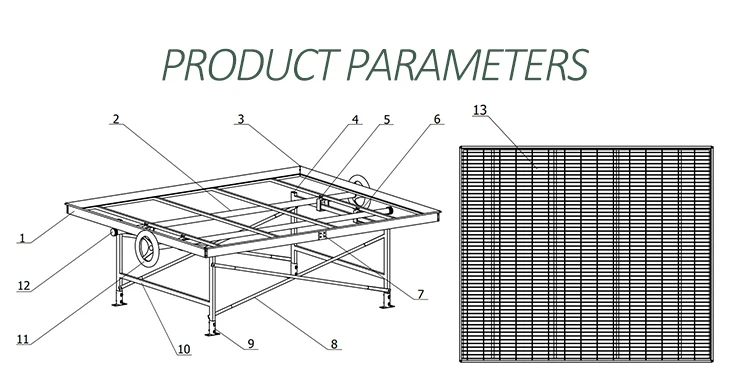

Product Parameters

Item No.	Part Name	Material	TECHNICAL: 1. Moving space: 300 mm - 500 mm. 2. Installation condition: concrete/ground. 3. Bench sizes can be customized refer to the greenhouse area and layout.
1	Frame	aluminium profile
2	Wheel beam	Hot dipped galvanized steel pipe
3	Corner bracket	ABS
4	Waterproof cap	Plastic
5	Anti-tip bracket	Nylon
6	Middle cross beam	Hot dipped galvanized steel pipe
7	Clamp	Aluminium alloy + ABS
8	Diagonal ligament	Hot dipped galvanized steel pipe
9	Feet	Hot dipped galvanized steel pipe
10	End braces	Hot dipped galvanized steel pipe
11	Steering wheel	Bakelite
12	Wheel beam cap	Plastic
13	Bench top	Carbon steel wire
