Working principle of Proportional Plastic Fertilizer Dosing Pump
Doser is installed in livestock farms water system.
The doser will work when the animal drinks water.
When water flows through the doser, the main piston is drived.
The injection piston connected with main piston moves up and down following it.
Then the drug would be suctioned into mixing chamber.
The mixture would be filled directly into the outlet end of the pipe.

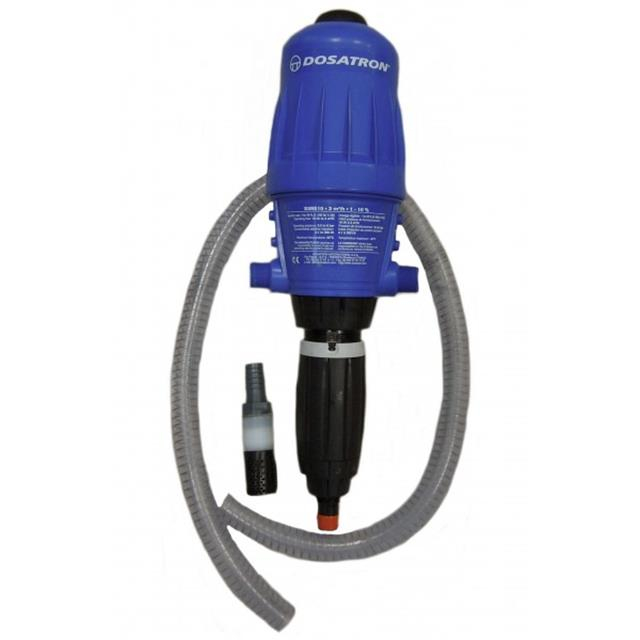

| Product Name | Proportional Plastic Fertilizer Dosing Pump |
| Pressure | water powered |
| Ratio | 0.4-4 % |
| Flow | 25-2500L/H |
| Working temperature | 5-40℃ |
| Water pressure | 4.30 to 85.0 PSI |
| Concentrated liquid injection flow rate | 0.02 L/h to 50 L/h |
| Connect pipe dia | 3/4" |
| Flow range | 10 L/h to 2.5 m3/h (0.16 L/min) |
| Working principle | Axial Flow Pump |
Gross Weight:2kg/pc
Packing Size:52*17*30cm
Proportional range: 0.4%-4%
Flow-rate range: 20-2500 L/H
Flow temperature: 4℃-30℃
Working water pressure: 0.2-6kg
Caliber of water inlet and water outlet: 32mm/25mm
